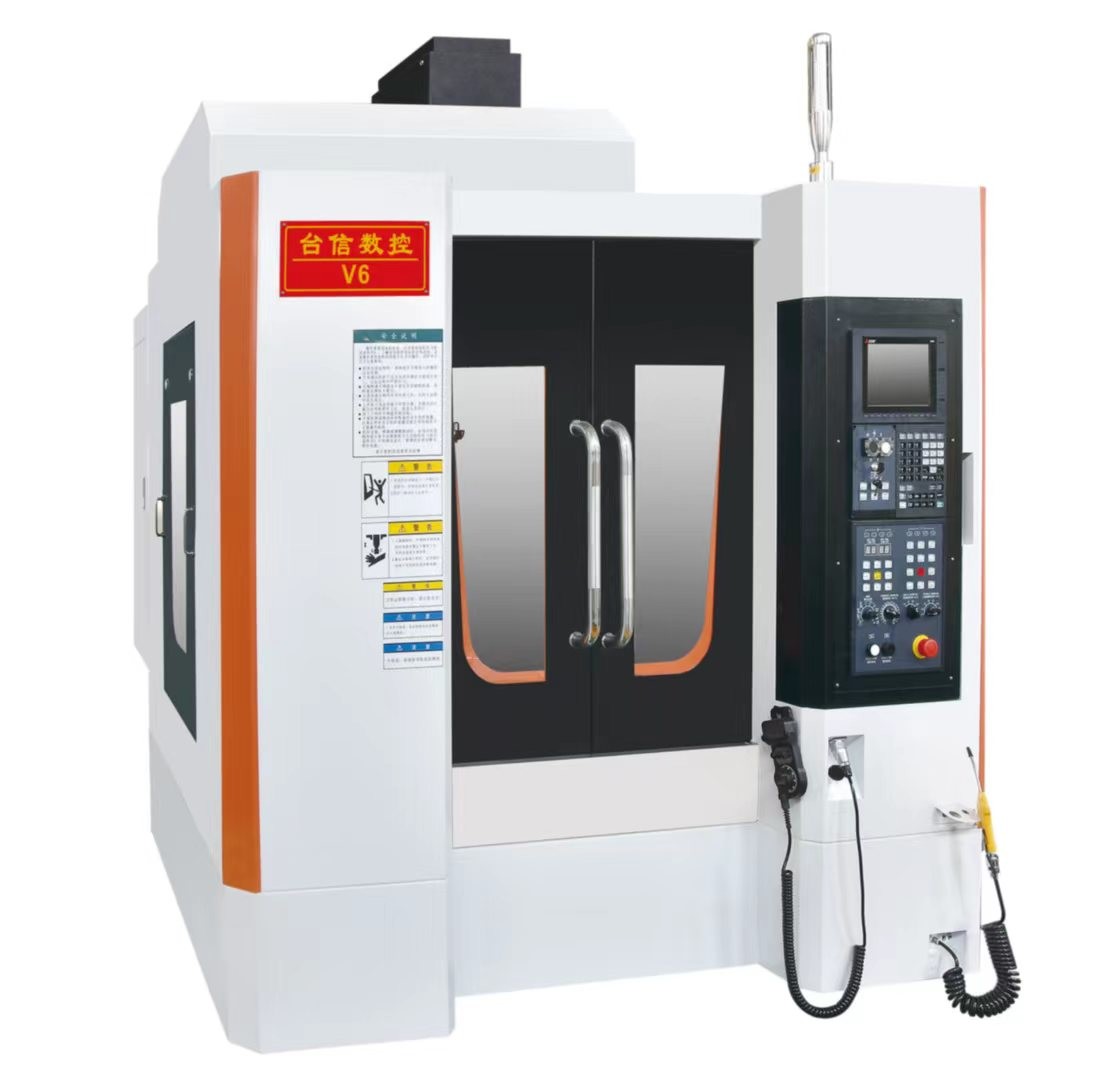

Rangkaian Linear Rail Machining Center (rel linier tiga sumbu) TXC-V9

Nama/Model: TXC-V6

Ukuran bangku kerja: 700 x 420 mm

Perjalanan tiga sumbu (X/Y/Z): 600/450/400 mm

Jarak dari ujung spindle ke meja kerja: 120-520 mm

Jarak dari pusat spindle ke rel panduan kolom: 480 mm

Spesifikasi rel sumbu X: 30 mm

Spesifikasi rel sumbu Y: 30 mm

Spesifikasi rel sumbu Z: 35 mm

T-slot (jumlah - ukuran x jarak) 5 - 18 x 100

Beban meja kerja: 350 kg

BT2 - RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT

Kecepatan maksimum spindle: 12000 rpm

Kekuatan spindle: 7,5 KW

Kekuatan motor tiga sumbu X/Y/Z: 1,5/1,5/3 KW

Spesifikasi sekrup bola X/Y/Z: 3216 mm

Kecepatan lintasan cepat tiga sumbu: 48/48/48 m/min

Kecepatan pemotongan tiga sumbu: 1-12000 mm/menit

Keakuratan posisi: ± 0,003/300 mm

Ulangi akurasi posisi: ± 0,003 mm

Berat mesin: 4 T

Ukuran mesin: 2400 x 2500 x 2600 mm
